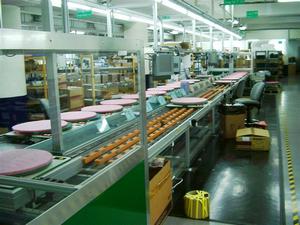

我們引進日本**SMT及光學檢測設備，并且導入無鉛制程。嚴格執行生產管制及檢驗并且提供數據統計及分析做為改善依據，落實品保循環。艾訊科技將持續不斷專注于生產技術的改良與創新，以提高產品生產效率及質量

展開顯示更多內容

工控機，平板電腦，嵌入式主板，嵌入式工控機，HMI，觸摸屏，航海級平板電腦，導軌式電腦，多媒體播放器

產品簡介在線詢價

產品特點CE

tBOX510-518-FL 產品信息

產品特點

CE, LVD, FCC, and EN 50155 certified and EN 50124 compliant
7th gen Intel® Core™ i7/i5/i3 or Celeron® processor (Kaby Lake)
Fanless and wide operating temperatures from -40°C to +70°C
Compact size with 1 PIM (Plug-in I/O Module) slot for various I/O requirements
24 to 110 VDC wide range power input for railway applications
Single-sided I/O design for easy maintenance
OVP, UVP, OCP, RPP power protection design

產品介紹

Axiomtek's tBOX510-518-FL is certified with EN 50155 and is in compliance with EN 50124 for railway-related applications. The railway box PC is powered by the Intel® Core™ processor or Intel® Celeron® processor 3965U. It comes with multi-functional expansion slots, modular design and a single-sided I/O design. Its compact structure ensures easy installation in limited space. It is built to withstａnd harsh operating environments with a wide operating temperature range of -40°C to +70°C and vibration endurance for up to 3Grms. Thanks to overcurrent, overvoltage, under-voltage and reverse polarity protection as well as 24V to 110V DC wide voltage input support, the tBOX510-518-FL is suitable for railway applications with varying voltage input requirements. It has a plug-in I/O module slot to meet different customization requirements.

CPU	Intel® Core™ i7-7600U 2C@2.8 GHz, TDP: 15W Intel® Core™ i5-7300U 2C@2.6 GHz, TDP: 15W Intel® Core™ i3-7100U 2C@2.4 GHz, TDP: 15W Intel® Celeron® 3965U 2C@2.2 GHz, TDP: 15W
Chipset	SoC integrated
System Memory	1 x DDR4-2133 SO-DIMM, up to 16GB
BIOS	AMI
COM	1 x DB9 serial console or RS-232/422/485
USB	1 x M12 A-code USB 2.0 (with 2 x USB 2.0) 4 x USB 3.0
Ethernet	2 x RJ-45 10/100/1000 Mbps (Intel® i210-IT)
PoE	N/A
Display	1 x HDMI 4K x 2K @24Hz 1 x VGA (up to 1920 x 1200 @60Hz)
CANbus	N/A
Digital I/O	1 x Terminal block isolated DIO 4-in/4-out (isolation voltage: 2 kV)
Audio	N/A
Storage	1 x Swappable 2.5" SATA drive (9.5 mm height) 1 x CFast™
Expansion	2 x Full-size Rev.1.2 PCI Express Mini Card slot (USB/PCIe) 1 x PIM (Plug-in I/O Module) slot 1 x External SIM card slot
Others	TPM 2.0 1 x Reset button 4 x Antenna opening
Power Supply	1 x M12, 24 to 110 VDC (S2 optional)
Power Consumption	24-110V@2.9-0.55A (with PIM901T)
Watchdog Timer	255 levels, 1 to 255 sec.
Construction	Aluminum extrusion and heavy-duty steel, IP30
Operating Temperature	-40°C to +70°C (-40°F to +158°F) with W.T. peripheral
Relative Humidity	0% to 95%, non-condensing
Vibration	3 Grms w/ SSD & wall mount (5 to 500Hz, X/Y/Z direction; random, operating) 2 Grms w/ SSD & DIN-rail (5 to 500Hz, X/Y/Z direction; random, operating) MIL-STD-810G, Method 514.6C-VI Category 4 compliant (for wall mount) EN 50155 EN 61373 category 1 class B
Shock	EN 50155 EN (IEC) 61373 category 1 class B, half-sine pulse, 5g, 30ms (longitudinal direction), 3g, 30ms (vertical/transverse direction)
Dimensions (W x D x H)	119.8 x 124.8 x 155 mm (4.72" x 4.91" x 6.1")
Weight (net/gross)	TBD
Certifications	CE, LVD, FCC, and EN 50155 certified EN 50124 compliant
EOS Support	Windows® 10 64-bit, Linux
Software Support	AMS.AXView
Mounting	Wall mount & DIN-rail (optional)
